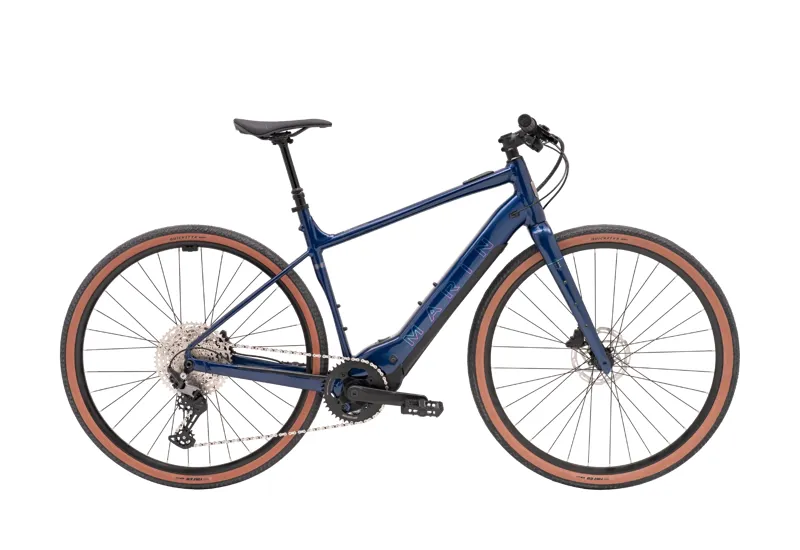

Marin DSX E in Dark Blue

Season:2026

Brand:Marin

Code:7407010DBLU

The Marin DSX E is built for the ride you didn't plan.

The DSX E doesn't pick a surface and neither should you. The Bosch SX Sprint motor has smooth assist, working with rather than instead of the rider. Expert engineering makes the Series 4 aluminium frame a smooth operator. Shimano Deore 12-speed gearing beats any gradient the motor doesn't. Vee Tire Quikstyk rubber is wide, tubeless-ready and confident on any surface. A dropper seatpost sorts the descents. Rack and fender mounts are the bike's ace in the hole.

The DSX is the mountain biker's gravel bike, offering familiar hand positioning for comfort and confidence. Taking inspiration from the Gestalt X drop bar line, the DSX is made to feel like an MTB but still cut it on all of those adventures that would normally demand curly bars. It is perfect for racking up road miles, daily grinds to work, multi-day epics and flowy singletrack.

Features:

  • Shimano 1 x 12 Speed Drivetrain
  • TransX Dropper Post

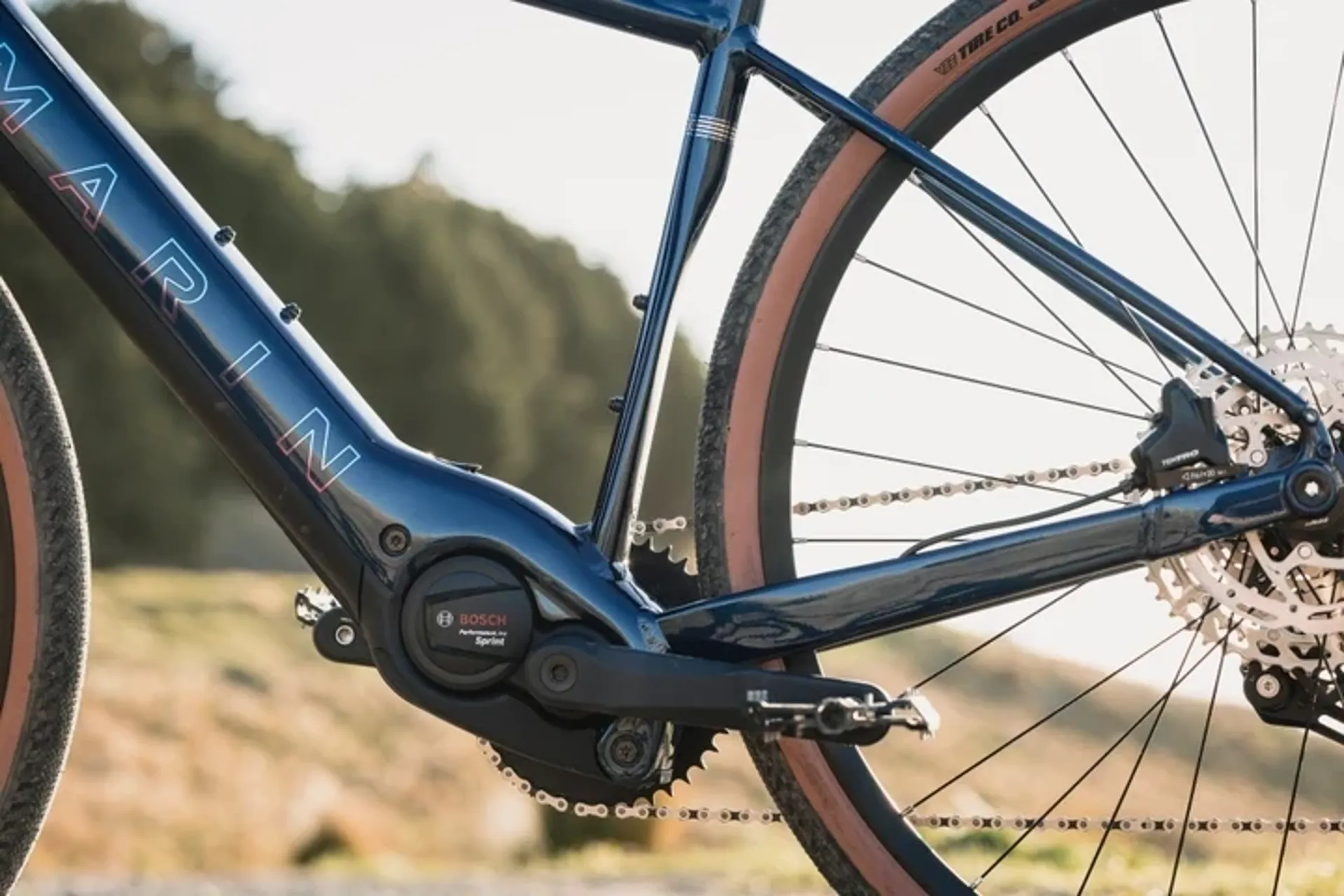

  • Bosch SX Power Unit and 400w/h Powertube
  • Tektro Hydraulic Disc Brakes
Technical Information
  • Range
    14-85 miles / 22-137km
  • Display
    Bosch Purion 400
  • Switch
    Bosch MiniRemote, Bluetooth
  • Battery
    Bosch Compact Power Tube 400, 400Wh
  • Motor
    Bosch SX, 250W, 55Nm, 25km/h
  • Fork
    Marin Full Carbon, tapered steerer, 12mm thru-axle, flat-mount disc, fender eyelets
  • Frame
    Series 4, 6061 aluminium, hydroformed, internal cable routing, mudguard and rack mounts, flat mount disc, 142x12mm thru-axle
  • Rim
    Marin aluminium double wall, 25mm inner, 18mm tall, disc specific, tubeless compatible
  • Hub Rear
    Forged aluminium alloy, 142x12mm, disc, 32H
  • Hub Front
    Forged aluminium alloy, 100x12mm, disc, 32H
  • Spokes
    14g black stainless steel
  • Tires
    Vee Tire Co. QuikStyk, 700x45, folding bead, tubeless compatible
  • Derailleur Rear
    Shimano Deore RD6100, 12-speed
  • Shift Lever
    Shimano Deore SLM6100, 12-speed
  • Crankset
    Forged aluminium, 42T steel narrow wide chainring
  • Bottom Bracket
    Sealed outboard bearing
  • Chain
    KMC X12
  • Cassette
    Shimano Deore CSM6100, 12-speed, 10-51T
  • Brakes
    Tektro HD-R3020, flat-mount hydraulic disc, 160mm rotor
  • Brake Levers
    Tektro Clean Cockpit
  • Handlebar
    Marin MiniRiser
  • Stem
    Marin 3D forged alloy
  • Grips
    Marin MTB
  • Headset
    FSA No.42 ACB, sealed cartridge bearings, 1 1/8” x 1 1/2”
  • Seatpost
    TranzX YSP38J, alloy remote, 70-100mm travel
  • Saddle
    Marin DSX
  • Pedals
    Nylon platform
  • Stack
    564.7-640mm
  • Reach
    385-425mm
  • Headtube angle
    70°
  • Headtube length
    130-210mm
  • Seattube length
    460-530mm
  • Seattube angle
    73.5°
  • Toptube effective
    552.2-614.5mm
  • Bottom bracket height
    282mm
  • Bottom bracket drop
    80mm
  • Chainstay length
    435mm
  • Wheelbase
    1042.2-1110mm
  • Standover height
    686.7-741.7mm
  • Fork offset
    50mm
  • Seatpost diameter
    27.2mm
  • Handlebar width
    680-700mm
  • Stem length
    70mm
  • Crank length
    170-175mm
Sizing Information



Seatpost Travel

The DSX E features a TranzX YSP38J dropper post. The travel distance varies by frame size: Size S offers 70 mm of travel, while all other sizes offer 100 mm of travel.

Geometry Small Medium Large XLarge
Stack 564.7 mm 585.5 mm 607 mm 640 mm
Reach 385 mm 405 mm 415 mm 425 mm
Headtube angle 70° 70° 70° 70°
Headtube length 130 mm 150 mm 175 mm 210 mm
Seattube length 460 mm 485 mm 505 mm 530 mm
Seattube angle 73.5° 73.5° 73.5° 73.5°
Toptube effective 552.2 mm 577.8 mm 595 mm 614.5 mm
Bb height 282 mm 282 mm 282 mm 282 mm
Bb drop 80 mm 80 mm 80 mm 80 mm
Chainstay 435 mm 435 mm 435 mm 435 mm
Wheelbase 1042.2 mm 1069 mm 1087.6 mm 1110 mm
Standover height 686.7 mm 702 mm 714.5 mm 741.7 mm
Fork offset 50 mm 50 mm 50 mm 50 mm
Seatpost diameter 27.2 mm 27.2 mm 27.2 mm 27.2 mm
Handlebar width 680 mm 680 mm 680 mm 700 mm
Stem length 70 mm 70 mm 70 mm 70 mm
Crank length 170 mm 170 mm 175 mm 175 mm
